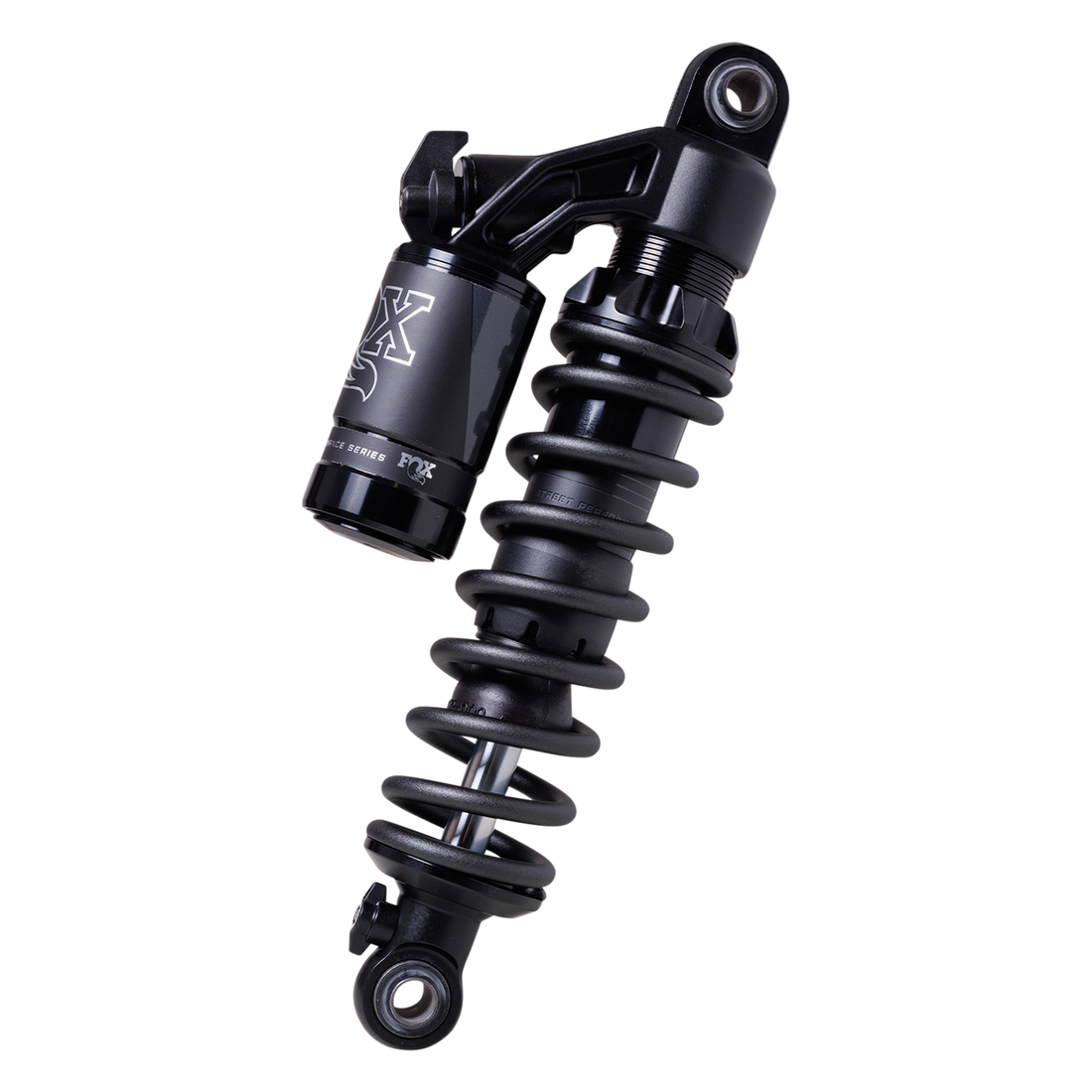

FOX Dyna QS3-QSR Fully Adjustable Shocks
Ships from the manufacturer — usually within 5–7 business days.
?
Have a question?
No B.S., no bot. Talk to a real person.
Why riders pick it
- Three-position QS3 compression adjustment
- Three-position QSR rebound adjustment
- Piggyback reservoirs for consistent damping
- Tune for comfort, support or precise handling
- Pairs with FOX GRIP fork cartridge kit
Specs
Details
The FOX QS3-QSR rear shocks feature three-position compression and rebound switches for easy adjustments. The Quick Switch compression (QS3) three-position adjustments on the piggyback reservoirs allow you to select between three specific settings: maximum comfort, extra support during hard acceleration, or most responsive and precise handling. The Quick Switch rebound (QSR) settings make it easy to dial in the correct rebound for different riding situations: comfort on bumpy backroads, “any road” balance of control and comfort, and a “glued to the asphalt” feeling on smooth twisty roads. Combine with the new FOX GRIP Street Performance Fork Cartridge Kit for Harley Dyna to achieve ultimate comfort and control.
Features
- Model-specific optimized ride tune
- QS3: 3-position quick switch compression adjustment
- QSR: 3-position quick switch rebound adjustment
- Spring preload setting guide marks
- Aluminum piggyback reservoirs
- Gas-charged mono-tube with internal floating piston (IFP) design
- 1.5-inch diameter 6061-T6 aluminum type III hard-anodized bodies
- Fully rebuildable and re-valvable
- Advanced high-flow, deflective disc velocity-sensitive damping
- 5/8-inch diameter, low friction, super-finished hard chrome shafts
- Matte black springs and black-anodized preload rings
Specs
Series: Street Performance
Travel: 2.91
Extended Length:12.5
Compression Length: 9.65
Top Mount: Eyelet
Bottom Mount: Eyelet
Spring Rate: Standard (Rider Weight up to 240lb)
Fitment
1991-2017 Dyna
NOTE: Kraus Motor Co. products are designed and engineered to be compatible with OEM fitments.
