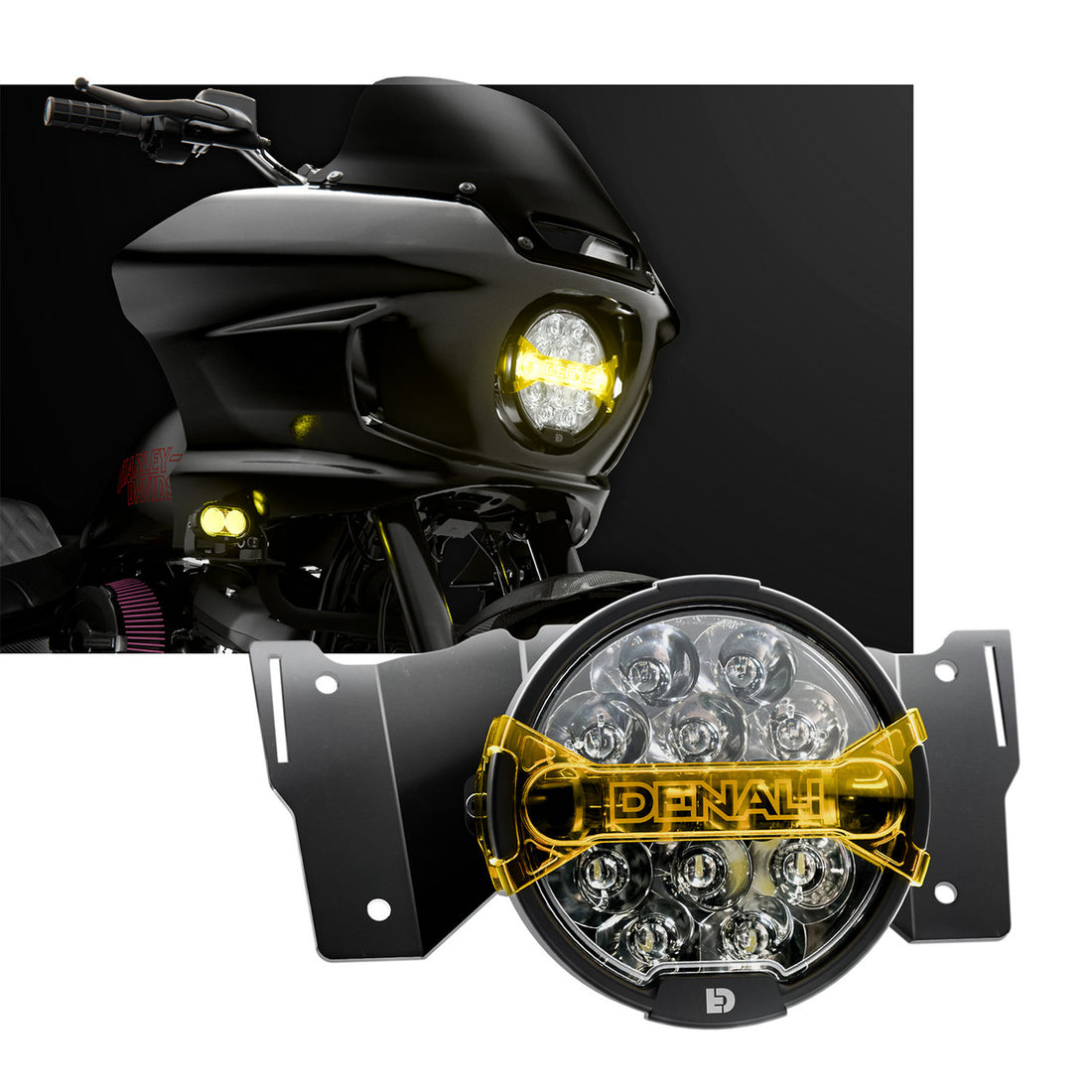

EOS Light Kit - With Denali Lighting (Low Rider ST)

Crush the Darkness. Command the Road.
Prepare for total domination. This is not your average headlight upgrade. The EOS Light Kit packs next-gen LED technology and tactical beam control into a slim, precision-engineered package built specifically for Low Rider ST style fairings. No drilling, no cutting, no compromises.

This is the brightest, most feature-rich, and street-legal lighting system ever engineered for your Low Rider ST.

At 6.75" diameter, this is a meaningful upgrade over your stock 5.75" headlight. This headlight sits flush and tight against your fairing. Requiring no modification to your fairing or leave the light protruding.

This kit includes the Denali D14 Destroyer Headlight, a lightweight all-aluminum mounting bracket and a simple plug-and-play wiring harness & install process.

FEATURES:

• Slim, Tight Fit
• 12,900 Lumens
• No Drilling or Cutting
• Upgraded 6.75" Headlight
• Lightweight Aluminum Bracketry
• Complete Plug-&-Play Headlight Upgrade Kit
• Dual High Beam Design (DOT high beam OR Destroyer high beam)
• DOT/SAE & ECE Street-Legal High/Low Beam
• Modular X-Lens System
• Easy-Adjust Design
• IP68 & 69K Waterproof, Submersible, & High-pressure Spray
• Limited Lifetime Warranty*

FITMENT:

2022-2026 Low Rider ST (Low Rider ST style fairings)

Note: Riders using Rockford Fosgate HD aftermarket speakers will require a separate bracket. Please reach out to us before purchasing if you have this configuration.

Note: Yellow X-Lenses are sold separately and in sets of 1.

NOTICE: Motorcycles equipped with aftermarket headlights or stereo components may experience increased battery draw. For best long-term performance, keep your bike on a quality battery tender or maintainer whenever it's not in use.

Full Specs:

D14 LED Headlight Specs

• LED's: (14x) 8 Watt High Intensity LED
• Max Power Draw: 105 Watts / 8 Amps
• Raw Lumens: 12,900
• Operating Voltage: 9-32 VDC
• Pod Size: 6.75" Round x 3" Deep
• Pod Weight: 2 lbs
• EMC R10 & CISPR 25
• IP68 & 69K Waterproof, Submersible, & High-pressure Spray
• DOT/SAE Compliant & ECE R149 Approved Low Beam
• DOT/SAE Compliant High Beam (Blue Wire)
• ECE R149 Approved High Beam (Orange Wire)

Destroyer Mode: ECE High + Low

• Raw Lumens: 12,900
• Power Draw: 105 Watts
• Beam Distance: 1500 ft
• Beam Width: 230 ft

DOT High Beam Mode: DOT High + Low

• Raw Lumens: 7,675
• Power Draw: 55 Watts
• Beam Distance: 850 ft
• Beam Width: 230 ft

DOT & ECE Low Beam Only

• Raw Lumens: 3,362
• Power Draw: 32 Watts
• Beam Distance: 530 ft
• Beam Width: 230 ft

*Warranty coverage is provided by Denali and applies only to the D14 lights. Mounting bracket and wire harness are excluded from this warranty.
